High Quality Universal Vice Supplier, Manufacturer from Taiwan

Catalog

Universal Vice

As a professional Manufacturer, Supplier and Exporter, FAMOUS CORPORATION is a manufacturing enterprise specializing in the designing, development, production and trade of Universal Vice. If you have problems or are disappointed with the low quality of other companies' products, please try our products. Our products will satisfy you and your customers perfectly. We supply products to all China customers.

Share to：

Universal Vice

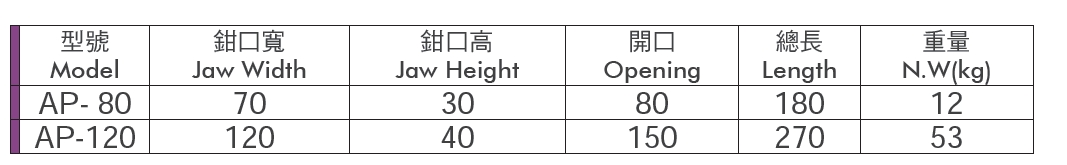

Model - AP

Precision Universal Angle Vise

Material : SK2, HRC54°~58°
Parallelism : ± 0.01mm/100mm
Squareness : ± 0.01mm/100mm
Precision graduation for accurate reading
Horizontal swivel through 360°
The unit tilts 45° vertically
This Vise well suited for straight or inclined surface, angular drilling machining on various machine tools as precision grinding machine, boring and milling machine, electrical discharge machine etc.

In order to meet the market demand, we will continually develop new

Universal Vice

products. Therefore, we are sincerely looking forward to bringing long-term cooperation with both state-owned and foreign enterprises.

Enquiry Now

* Required

To: FAMOUS CORPORATION

*Subject:

Enquiry Details

Incoterm:

Payment:

Initial Order Quantity:

Sample Terms:

*Message:

Please provide following contact details

Title:

Mr.

Ms.

Mrs.

*First Name:

*Last Name:

*Company:

*Country/Territory:

Address:

*E-mail:

*Telephone:

Fax:

URL:

*Prove code:

Click Refresh Prove code

Products List

View Detail

Tool Makers Vice

Tool Maker Vise Material : JIS SKS3 , HRC 60° Parallelism : <0.003 mm / 100 mm Squareness : <0.005 mm / 100 mm Idea tools to block and position pieces with high precision, both for machining and checking. They are suitable for grinding and milling machines, working centers and electron discharge machines.

View Detail

Precision Toolmakers Vise

Precision Vise Tool Maker Vise: Precision Vise VB Material: SK2, HRC56°~58° (VB60: S50C, HRC55°~56°) Parallelism: within 0.005mm/100mm Squareness: within 0.005mm/100mm This Tool Maker Vise can use the hoist to adjust the forward/backward movements of sliding seat.

View Detail

Precision Toolmakers Vice

Precision Vise Material : SK2,HRC54°~58° Parallelism : within 0.005mm/100mm Squareness : within 0.005mm/100mm Suitable for small working-piece grinding and electric electrode processing. Replacing square master to revise and measure working pieces

View Detail

Tool Makers Vise

Tool Maker Vise of Screw type Material : SK2,HRC54°~58° Parallelism : within 0.005mm/100mm Squareness : within 0.005mm/100mm The specially designed reverse hook eliminates effectively the floating of sliding seat under the strength influence, thus ensuring the precision of working pieces.

View Detail

Stainless Vise

VST

Mini Stainless Precision Vise Material : SK2,HRC58°~60° Parallelism : within 0.004mm/100mm Squareness : within 0.004mm/100mm Micro tool maker vise is applied to clip tiny workpiece, or assist large vise to make two-way compound clipping and ensure the clipping precision.

View Detail

Wire EDM Vise

WST

EDM Tool Maker Vise Tool Maker Vise- EDM Type Material : SUS440，HRC55° Parallelism : within 0.008mm/100mm Squareness : within 0.008mm/100mm Both vise and slippery block are made by stainless steel, good anti-corrosion capability.

View Detail

Precision Sine Vise

Precision Sine Vise Material : SK2，HRC56°~58° Parallelism : within 0.005mm/100mm Squareness : within 0.005mm/100mm Except holding the advantages of tool maker vise, the sine vise also can clip work piece by various angles under sine theory to check and cut the workpiece; the adjustable angle range is 0~46°, sine gauge conversion table is attached to product for gauge selection.

View Detail

Sine Vise

Sine Vise of Screw Type Material : SK2, HRC56°~58°。 Parallelism : within 0.005mm/100mm Squareness : within 0.005mm/100mm With angle between 0°~ 45° In addition to features of tool maker vise, this sine vise employs the sine theory for the angle inspection and grinding.
