Precision Sine Vise

We are a leading and technical global exporter, supplier and manufacturer of Precision Sine Vise. Also we are always ready to take on custom synthesis projects. Over the years, we have built a reputation for providing the best quality products with the most competitive price and on-time delivery. We provide service to customers around the world, USA, Canada, Europe, India, Japan etc. Through fastest delivery of high-quality products at fair prices, we have become a "preferred supplier" of many customers.
  • Precision Sine Vise - SV
Precision Sine Vise

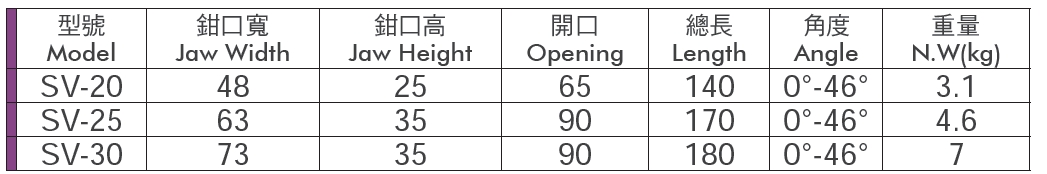

Model - SV
Precision Sine Vise
  • Material : SK2,HRC56°~58°
  • Parallelism : within 0.005mm/100mm
  • Squareness : within 0.005mm/100mm
  • Except holding the advantages of tool maker vise, the sine vise also can clip work piece by various angles under sine theory to check and cut the workpiece; the adjustable angle range is 0~46°, sine gauge conversion table is attached to product for gauge selection.

On the basis of the concept of "to service the customers by credit" and the management method of 'people oriented', we can provide the customers top quality

Precision Sine Vise

with superior services. We believe that we can create more business opportunities for you, your profit is what we are seeking for, we wish to cooperate with you! sincerely welcomes friends of all circles to visit us.
Enquiry Now
Products List
Tool Maker Vise Material : JIS SKS3 , HRC 60° Parallelism :  <0.003 mm / 100 mm Squareness : <0.005 mm / 100 mm Idea tools to block and position pieces with high precision, both for machining and checking.  They are suitable for grinding and milling machines, working centers and electron discharge machines.
Precision Vise Tool Maker Vise: Precision Vise VB Material: SK2, HRC56°~58° (VB60: S50C, HRC55°~56°) Parallelism: within 0.005mm/100mm Squareness: within 0.005mm/100mm This Tool Maker Vise can use the hoist to adjust the forward/backward movements of sliding seat.
Precision Vise Material : SK2,HRC54°~58° Parallelism : within 0.005mm/100mm Squareness : within 0.005mm/100mm Suitable for small working-piece grinding and electric electrode processing. Replacing square master to revise and measure working pieces
Tool Maker Vise of Screw type Material : SK2,HRC54°~58° Parallelism : within 0.005mm/100mm Squareness : within 0.005mm/100mm The specially designed reverse hook eliminates effectively the floating of sliding seat under the strength influence, thus ensuring the precision of working pieces.
Mini Stainless Precision Vise Material : SK2,HRC58°~60° Parallelism : within 0.004mm/100mm Squareness : within 0.004mm/100mm Micro tool maker vise is applied to clip tiny workpiece, or assist large vise to make two-way compound clipping and ensure the clipping precision.
EDM Tool Maker Vise Tool Maker Vise- EDM Type Material : SUS440,HRC55° Parallelism : within 0.008mm/100mm Squareness : within 0.008mm/100mm Both vise and slippery block are made by stainless steel, good anti-corrosion capability.
Sine Vise of Screw Type Material : SK2, HRC56°~58°。 Parallelism : within 0.005mm/100mm Squareness : within 0.005mm/100mm With angle between 0°~ 45° In addition to features of tool maker vise, this sine vise employs the sine theory for the angle inspection and grinding.
Precision Universal Angle Vise Material : SK2, HRC54°~58° Parallelism : ± 0.01mm/100mm Squareness : ± 0.01mm/100mm Precision graduation for accurate reading Horizontal swivel through 360° The unit tilts 45° vertically This Vise well suited for straight or inclined surface, angular drilling machining on various machine tools as precision grinding machine, boring and milling machine, electrical discharge machine etc.
