TürkPrecision Toolmakers Vise
FAMOUS CORPORATION is a professional manufacturer, supplier and exporter that is concerned with the appearance, development and production of Precision Toolmakers Vise. We are located in Taiwan, with convenient transportation access. All of products are strict checked by our professional employee.
Precision Toolmakers Vise

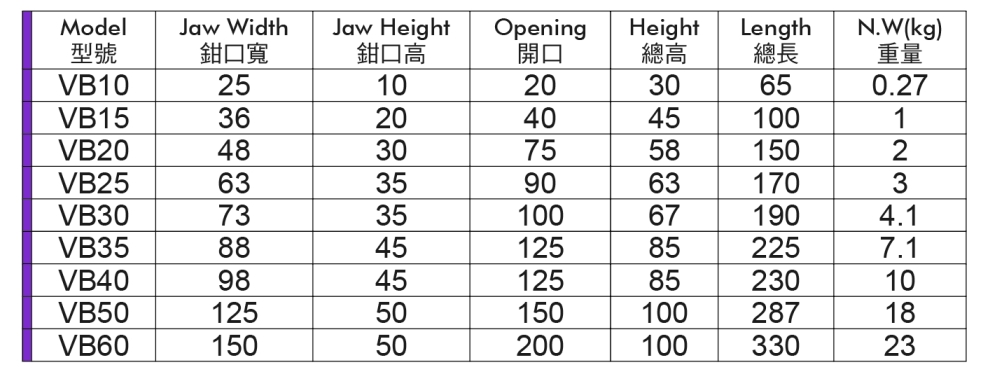

Model - VB
Precision Vise
- Tool Maker Vise: Precision Vise VB
- Material: SK2, HRC56°~58° (VB60: S50C, HRC55°~56°)
- Parallelism: within 0.005mm/100mm
- Squareness: within 0.005mm/100mm
- This Tool Maker Vise can use the hoist to adjust the forward/backward movements of sliding seat.
Relying on super quality
Precision Toolmakers Vise
and perfect after-sales service, our company has got an outstanding reputation in the same line. And warmly welcomes new and old customers from worldwide to build up cooperation with us.Enquiry Now
Products List
Tool Maker Vise
Material : JIS SKS3 , HRC 60°
Parallelism : <0.003 mm / 100 mm
Squareness : <0.005 mm / 100 mm
Idea tools to block and position pieces with high precision, both for machining and checking. They are suitable for grinding and milling machines, working centers and electron discharge machines.
Precision Vise
Material : SK2,HRC54°~58°
Parallelism : within 0.005mm/100mm
Squareness : within 0.005mm/100mm
Suitable for small working-piece grinding and electric electrode processing.
Replacing square master to revise and measure working pieces
Tool Maker Vise of Screw type
Material : SK2,HRC54°~58°
Parallelism : within 0.005mm/100mm
Squareness : within 0.005mm/100mm
The specially designed reverse hook eliminates effectively the floating of sliding seat under the strength influence, thus ensuring the precision of working pieces.
Mini Stainless Precision Vise
Material : SK2,HRC58°~60°
Parallelism : within 0.004mm/100mm
Squareness : within 0.004mm/100mm
Micro tool maker vise is applied to clip tiny workpiece, or assist large vise to make two-way compound clipping and ensure the clipping precision.
EDM Tool Maker Vise
Tool Maker Vise- EDM Type
Material : SUS440，HRC55°
Parallelism : within 0.008mm/100mm
Squareness : within 0.008mm/100mm
Both vise and slippery block are made by stainless steel, good anti-corrosion capability.
Precision Sine Vise
Material : SK2，HRC56°~58°
Parallelism : within 0.005mm/100mm
Squareness : within 0.005mm/100mm
Except holding the advantages of tool maker vise, the sine vise also can clip work piece by various angles under sine theory to check and cut the workpiece; the adjustable angle range is 0~46°, sine gauge conversion table is attached to product for gauge selection.
Sine Vise of Screw Type
Material : SK2, HRC56°~58°。
Parallelism : within 0.005mm/100mm
Squareness : within 0.005mm/100mm
With angle between 0°~ 45°
In addition to features of tool maker vise, this sine vise employs the sine theory for the angle inspection and grinding.
Precision Universal Angle Vise
Material : SK2, HRC54°~58°
Parallelism : ± 0.01mm/100mm
Squareness : ± 0.01mm/100mm
Precision graduation for accurate reading
Horizontal swivel through 360°
The unit tilts 45° vertically
This Vise well suited for straight or inclined surface, angular drilling machining on various machine tools as precision grinding machine, boring and milling machine, electrical discharge machine etc.
