TürkPrecision Toolmakers Vice
FAMOUS CORPORATION a manufacturer specialized in the research, maining engage in manufacturing Precision Toolmakers Vice in Taiwan, development and production of Moulds. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Precision Toolmakers Vice

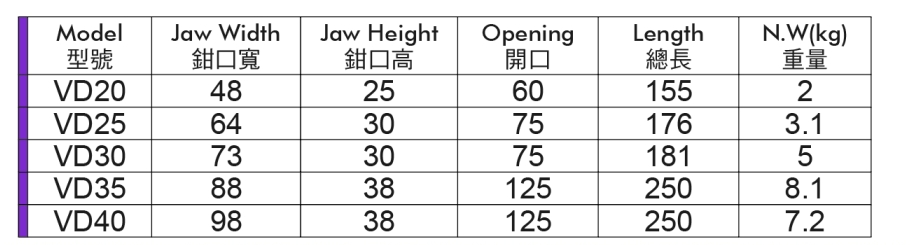

Model - VD
Precision Vise
- Material : SK2,HRC54°~58°
- Parallelism : within 0.005mm/100mm
- Squareness : within 0.005mm/100mm
- Suitable for small working-piece grinding and electric electrode processing.
- Replacing square master to revise and measure working pieces
We can support new designs according to the requirements of customers; our
Precision Toolmakers Vice
is to fulfill our potential to ensure the highest quality service. For more information on our products, please take your time to browse through our website or give us a call, we wish to be of service soon.Enquiry Now
Products List
Tool Maker Vise
Material : JIS SKS3 , HRC 60°
Parallelism : <0.003 mm / 100 mm
Squareness : <0.005 mm / 100 mm
Idea tools to block and position pieces with high precision, both for machining and checking. They are suitable for grinding and milling machines, working centers and electron discharge machines.
Precision Vise
Tool Maker Vise: Precision Vise VB
Material: SK2, HRC56°~58° (VB60: S50C, HRC55°~56°)
Parallelism: within 0.005mm/100mm
Squareness: within 0.005mm/100mm
This Tool Maker Vise can use the hoist to adjust the forward/backward movements of sliding seat.
Tool Maker Vise of Screw type
Material : SK2,HRC54°~58°
Parallelism : within 0.005mm/100mm
Squareness : within 0.005mm/100mm
The specially designed reverse hook eliminates effectively the floating of sliding seat under the strength influence, thus ensuring the precision of working pieces.
Mini Stainless Precision Vise
Material : SK2,HRC58°~60°
Parallelism : within 0.004mm/100mm
Squareness : within 0.004mm/100mm
Micro tool maker vise is applied to clip tiny workpiece, or assist large vise to make two-way compound clipping and ensure the clipping precision.
EDM Tool Maker Vise
Tool Maker Vise- EDM Type
Material : SUS440，HRC55°
Parallelism : within 0.008mm/100mm
Squareness : within 0.008mm/100mm
Both vise and slippery block are made by stainless steel, good anti-corrosion capability.
Precision Sine Vise
Material : SK2，HRC56°~58°
Parallelism : within 0.005mm/100mm
Squareness : within 0.005mm/100mm
Except holding the advantages of tool maker vise, the sine vise also can clip work piece by various angles under sine theory to check and cut the workpiece; the adjustable angle range is 0~46°, sine gauge conversion table is attached to product for gauge selection.
Sine Vise of Screw Type
Material : SK2, HRC56°~58°。
Parallelism : within 0.005mm/100mm
Squareness : within 0.005mm/100mm
With angle between 0°~ 45°
In addition to features of tool maker vise, this sine vise employs the sine theory for the angle inspection and grinding.
Precision Universal Angle Vise
Material : SK2, HRC54°~58°
Parallelism : ± 0.01mm/100mm
Squareness : ± 0.01mm/100mm
Precision graduation for accurate reading
Horizontal swivel through 360°
The unit tilts 45° vertically
This Vise well suited for straight or inclined surface, angular drilling machining on various machine tools as precision grinding machine, boring and milling machine, electrical discharge machine etc.
