Clamping Tools

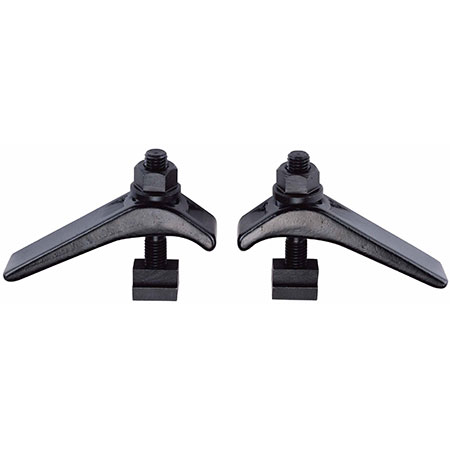

U-Clamping Material:S45C Hardened:HRC32˚~38 ˚ Surface Finish: Black Oxide 2pcs/set Product spec.: Inch size 3/8”, 1/2”, 5/8”, 3/4”, 1”; Metric size M10, M12, M16, M20, M24 Apply for fixing each kind of working pieces on machining table.

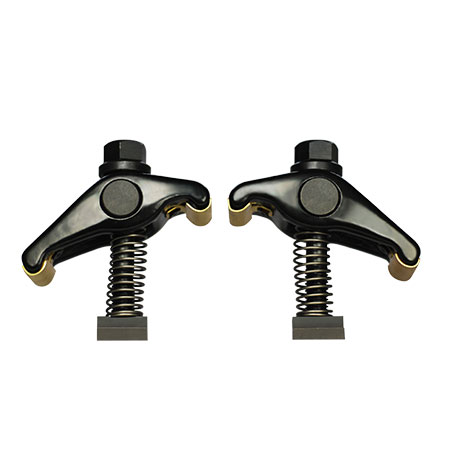

U-Clamping (with copper) U-Clamping with copper type Material:S45C Hardened:HRC32˚~38 ˚ Surface Finish: Black Oxide 2pcs/set, with copper and spring The height can be adjusted freely to clamp the workpiece, and the operation is easy.

UP-Clamping UP-Clamping 2pcs/set Material:S45C Hardened:HRC32˚~38 ˚ Surface Finish: Black Oxide Product spec.: Inch size 1/2”, 5/8”, 3/4”; Metric size M12, M16, M20 Including: 2pcs Flanged Nuts, 2pcs T-Slot Nuts, 2 pcs Clamping Studs, 2 pcs Washer

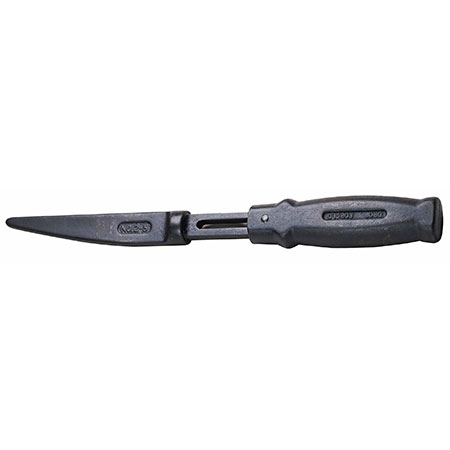

Drift This drift is made of special steel under precision forge casting. The tip is heat-treated, hard and durable. Inside the handle is a strong spring. It has a strong impact, and the drift can be pulled out easily.

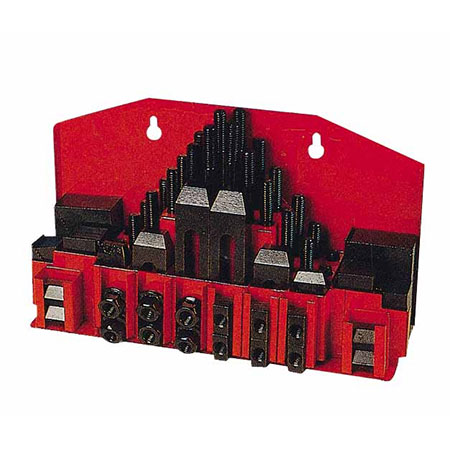

Clamping Kit Purpose: Apply for fixing each kind of working pieces on machining table Material: S45C, black oxide furnished Heat treatment：Hardness of each part is HRC32±5° Each Set contains: stud 24pcs, T nut 6 pcs, flange nut 6 pcs, coupling nut 4 pcs, step clamp 6 pcs, step block 6 pcs, plastic frame

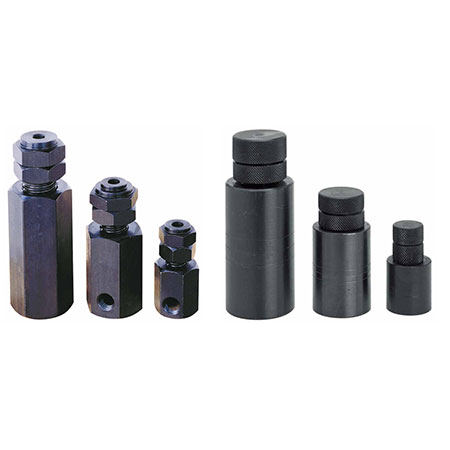

Jack Purpose: Height is adjustable for supporting the working piece on table Material: S45C, black oxide furnished 5 sizes: S-60 (0.6kg), S-70 (0.5kg), S-150 (1kg), S-250 (2.1kg), S-500 (3.8kg) Spiral shape design, convenient operation.

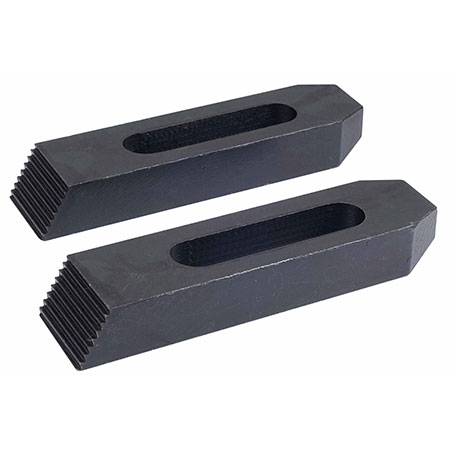

Step Clamps   Purpose: Engage the teeth into teeth of step block to adjust the clamping height Material: S45C, black oxide furnished Heat treatment: HRC32±5° Product spec.: 3/8S 3/8M 3/8L (slot width 11mm) 1/2S 1/2M 1/2L (slot width 15mm) 5/8S 5/8M 5/8L (slot width 18mm) 3/4S 3/4M 3/4L (slot width 21mm) 1S 1M 1L (slot width 26mm)

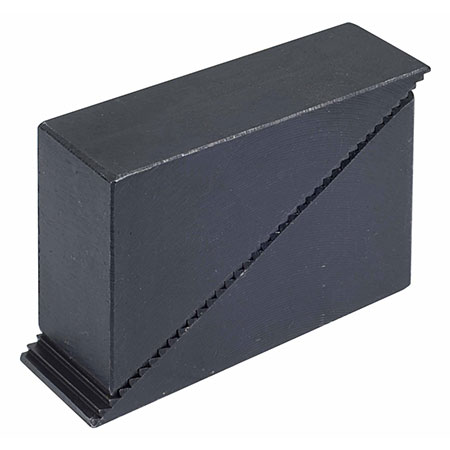

Step Blocks   Purpose: The height of block is adjustable when stack up a pair of step block Material: S45C, black oxide furnished Heat treatment：HRC32±5° Product spec.: 3/8S 3/8M 3/8L (thickness 25mm) 1/2S 1/2M 1/2L (thickness 32mm) 3/4S 3/4M 3/4L (thickness 38mm) 1S 1M 1L (thickness 50mm)

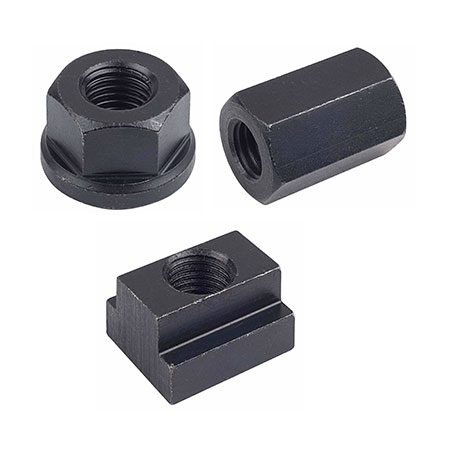

Flanged, Coupling, T- Slot Nuts    Flanged Nuts: Combine with stud and clamp for all kind of clipping application. Coupling Nuts: Connect two studs on both ends of nut to extend the length of applying range. T-Slot Nuts: Apply on the T slotted working table. Material: S45C, black oxide furnished Heat treatment: HRC32±5° Product spec.: Inch size 3/8”/1/2”/5/8”/3/4”7/8”/1”； Metric size M8/ M10/M12 /M14/M16/M18/M20/M24

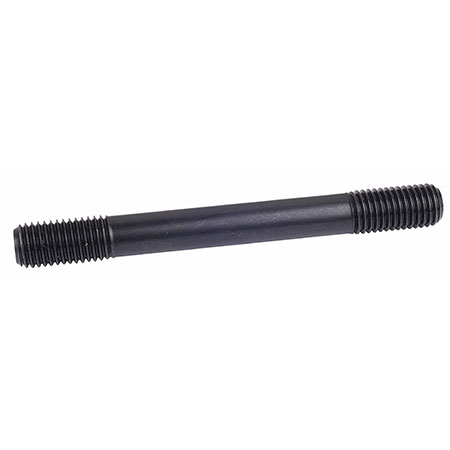

Clamping Studs Purpose: Operate with flange nut and every kind of clamping plain for fixing work piece on slotted table. Material: S45C, black oxide furnished Heat treatment： HRC 32±5° Product spec: Inch size 5/16”/3/8”/1/2”/5/8”/3/4”7/8”/1” Metric size M8/M10/M12/M14 /M16/M18/M20/M22/M24

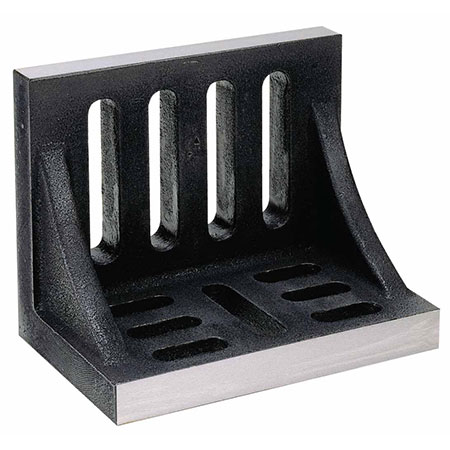

L-Plate Made of high tensile cast iron properly seasoned against dis-torsion. Webbed style accurately machined, square and parallel on out-side faces and ends. 9 sizes: L-4, L-6, L-8, L-10, L-12, L-16, L-20, L-24, L-36

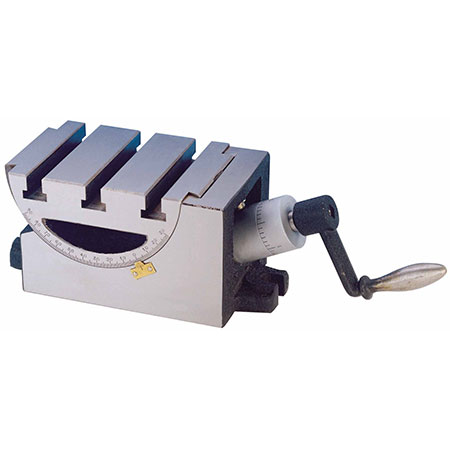

Tilting Angle Plate CL-1 is used mainly on precision angle cutting, it can be used for grinding and drilling, too. Manual adjustment and easy operation. There are 5 graduations on the swivel shaft. The left and right angles are adjustable to 30° and 90° respectively.

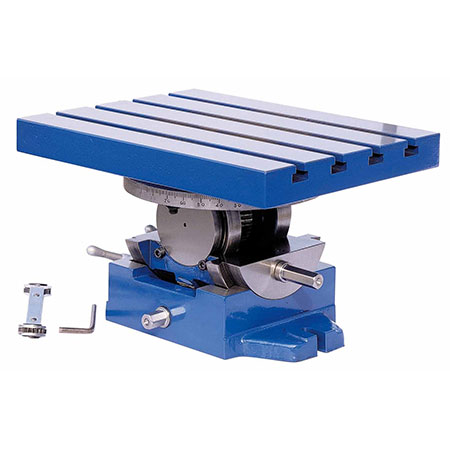

Universal Tilting Table NCL Table 360˚ swivel.     45˚ tilt to front, rear, left and right. T-Slot of table is 12mm. Suitable for all kinds of slant processing. The weight is 40kgs; Height: 200mm
