TürkCopper U Clamp
We are always keeping an eye on market and customer demand at any time and changing our strategy according to it. We manufacturer, supplier and exporter the best quality Copper U Clamp as well as prompt and satisfactory service according to the environment of the market and customer in Taiwan, which embodies our core value of customer centered and market-oriented on product quality.
Copper U Clamp

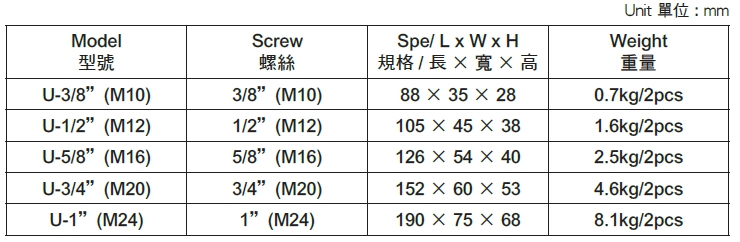

Model - U-Clamping (with copper)
U-Clamping (with copper)
- U-Clamping with copper type
- Material:S45C
- Hardened:HRC32˚~38 ˚
- Surface Finish: Black Oxide
- 2pcs/set, with copper and spring
- The height can be adjusted freely to clamp the workpiece, and the operation is easy.
Our
Copper U Clamp
products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new old customers from all walks of life to contact us for future business relationships and mutual success.Enquiry Now
Products List
U-Clamping
Material:S45C
Hardened:HRC32˚~38 ˚
Surface Finish: Black Oxide
2pcs/set
Product spec.: Inch size 3/8”, 1/2”, 5/8”, 3/4”, 1”; Metric size M10, M12, M16, M20, M24
Apply for fixing each kind of working pieces on machining table.
UP-Clamping
UP-Clamping 2pcs/set
Material:S45C
Hardened:HRC32˚~38 ˚
Surface Finish: Black Oxide
Product spec.: Inch size 1/2”, 5/8”, 3/4”; Metric size M12, M16, M20
Including: 2pcs Flanged Nuts, 2pcs T-Slot Nuts, 2 pcs Clamping Studs, 2 pcs Washer
Drift
This drift is made of special steel under precision forge casting. The tip is heat-treated, hard and durable. Inside the handle is a strong spring. It has a strong impact, and the drift can be pulled out easily.
Clamping Kit
Purpose: Apply for fixing each kind of working pieces on machining table
Material: S45C, black oxide furnished
Heat treatment：Hardness of each part is HRC32±5°
Each Set contains: stud 24pcs, T nut 6 pcs, flange nut 6 pcs, coupling nut 4 pcs, step clamp 6 pcs, step block 6 pcs, plastic frame
Jack
Purpose: Height is adjustable for supporting the working piece on table
Material: S45C, black oxide furnished
5 sizes: S-60 (0.6kg), S-70 (0.5kg), S-150 (1kg), S-250 (2.1kg), S-500 (3.8kg)
Spiral shape design, convenient operation.
Step Clamps
Purpose: Engage the teeth into teeth of step block to adjust the clamping height
Material: S45C, black oxide furnished
Heat treatment: HRC32±5°
Product spec.:
3/8S 3/8M 3/8L (slot width 11mm)
1/2S 1/2M 1/2L (slot width 15mm)
5/8S 5/8M 5/8L (slot width 18mm)
3/4S 3/4M 3/4L (slot width 21mm)
1S 1M 1L (slot width 26mm)
Step Blocks
Purpose: The height of block is adjustable when stack up a pair of step block
Material: S45C, black oxide furnished
Heat treatment：HRC32±5°
Product spec.:
3/8S 3/8M 3/8L (thickness 25mm)
1/2S 1/2M 1/2L (thickness 32mm)
3/4S 3/4M 3/4L (thickness 38mm)
1S 1M 1L (thickness 50mm)
Flanged, Coupling, T- Slot Nuts
Flanged Nuts: Combine with stud and clamp for all kind of clipping application.
Coupling Nuts: Connect two studs on both ends of nut to extend the length of applying range.
T-Slot Nuts: Apply on the T slotted working table.
Material: S45C, black oxide furnished
Heat treatment: HRC32±5°
Product spec.:
Inch size 3/8”/1/2”/5/8”/3/4”7/8”/1”；
Metric size M8/ M10/M12 /M14/M16/M18/M20/M24
Clamping Studs
Purpose: Operate with flange nut and every kind of clamping plain for fixing work piece on slotted table.
Material: S45C, black oxide furnished
Heat treatment： HRC 32±5°
Product spec: Inch size 5/16”/3/8”/1/2”/5/8”/3/4”7/8”/1”
Metric size M8/M10/M12/M14 /M16/M18/M20/M22/M24
L-Plate
Made of high tensile cast iron properly seasoned against dis-torsion.
Webbed style accurately machined, square and parallel on out-side faces and ends.
9 sizes: L-4, L-6, L-8, L-10, L-12, L-16, L-20, L-24, L-36
Tilting Angle Plate
CL-1 is used mainly on precision angle cutting, it can be used for grinding and drilling, too.
Manual adjustment and easy operation. There are 5 graduations on the swivel shaft.
The left and right angles are adjustable to 30° and 90° respectively.
Universal Tilting Table NCL
Table 360˚ swivel.
45˚ tilt to front, rear, left and right.
T-Slot of table is 12mm.
Suitable for all kinds of slant processing.
The weight is 40kgs; Height: 200mm
