TürkU Clamp
FAMOUS CORPORATION is specialized in U Clamp manufacturer, supplier. Excellent quality, best service, profession, and sincerity are the positive feedbacks earned from our clients. They help us to blend the positive images in the market for all of our products, and they have our promises to all of our worldwide clients. We will be in a sound position to provide clients with the highest performance and enable us to share the fruits of success with you. We welcome your suggestions and ideas on how we can make our company a better supplier and an improved partner to your business. 100% quality check will be performed to make sure the goods are of high quality standard when delivered to customer end.
U Clamp
Model - U-Clamping
U-Clamping
- Material:S45C
- Hardened:HRC32˚~38 ˚
- Surface Finish: Black Oxide
- 2pcs/set

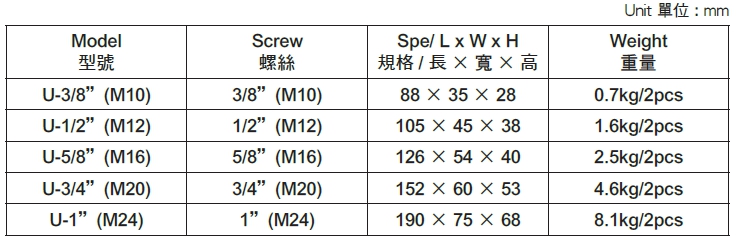

- Product spec.: Inch size 3/8”, 1/2”, 5/8”, 3/4”, 1”; Metric size M10, M12, M16, M20, M24
- Apply for fixing each kind of working pieces on machining table.
We are a giant supplier of
U Clamp
. We are looking for partner who can operate those business with us. All our prices are very competitive. If you are interested in, please contact us.Enquiry Now
Products List
U-Clamping (with copper)
U-Clamping with copper type
Material:S45C
Hardened:HRC32˚~38 ˚
Surface Finish: Black Oxide
2pcs/set, with copper and spring
The height can be adjusted freely to clamp the workpiece, and the operation is easy.
UP-Clamping
UP-Clamping 2pcs/set
Material:S45C
Hardened:HRC32˚~38 ˚
Surface Finish: Black Oxide
Product spec.: Inch size 1/2”, 5/8”, 3/4”; Metric size M12, M16, M20
Including: 2pcs Flanged Nuts, 2pcs T-Slot Nuts, 2 pcs Clamping Studs, 2 pcs Washer
Drift
This drift is made of special steel under precision forge casting. The tip is heat-treated, hard and durable. Inside the handle is a strong spring. It has a strong impact, and the drift can be pulled out easily.
Clamping Kit
Purpose: Apply for fixing each kind of working pieces on machining table
Material: S45C, black oxide furnished
Heat treatment：Hardness of each part is HRC32±5°
Each Set contains: stud 24pcs, T nut 6 pcs, flange nut 6 pcs, coupling nut 4 pcs, step clamp 6 pcs, step block 6 pcs, plastic frame
Jack
Purpose: Height is adjustable for supporting the working piece on table
Material: S45C, black oxide furnished
5 sizes: S-60 (0.6kg), S-70 (0.5kg), S-150 (1kg), S-250 (2.1kg), S-500 (3.8kg)
Spiral shape design, convenient operation.
Step Clamps
Purpose: Engage the teeth into teeth of step block to adjust the clamping height
Material: S45C, black oxide furnished
Heat treatment: HRC32±5°
Product spec.:
3/8S 3/8M 3/8L (slot width 11mm)
1/2S 1/2M 1/2L (slot width 15mm)
5/8S 5/8M 5/8L (slot width 18mm)
3/4S 3/4M 3/4L (slot width 21mm)
1S 1M 1L (slot width 26mm)
Step Blocks
Purpose: The height of block is adjustable when stack up a pair of step block
Material: S45C, black oxide furnished
Heat treatment：HRC32±5°
Product spec.:
3/8S 3/8M 3/8L (thickness 25mm)
1/2S 1/2M 1/2L (thickness 32mm)
3/4S 3/4M 3/4L (thickness 38mm)
1S 1M 1L (thickness 50mm)
Flanged, Coupling, T- Slot Nuts
Flanged Nuts: Combine with stud and clamp for all kind of clipping application.
Coupling Nuts: Connect two studs on both ends of nut to extend the length of applying range.
T-Slot Nuts: Apply on the T slotted working table.
Material: S45C, black oxide furnished
Heat treatment: HRC32±5°
Product spec.:
Inch size 3/8”/1/2”/5/8”/3/4”7/8”/1”；
Metric size M8/ M10/M12 /M14/M16/M18/M20/M24
Clamping Studs
Purpose: Operate with flange nut and every kind of clamping plain for fixing work piece on slotted table.
Material: S45C, black oxide furnished
Heat treatment： HRC 32±5°
Product spec: Inch size 5/16”/3/8”/1/2”/5/8”/3/4”7/8”/1”
Metric size M8/M10/M12/M14 /M16/M18/M20/M22/M24
L-Plate
Made of high tensile cast iron properly seasoned against dis-torsion.
Webbed style accurately machined, square and parallel on out-side faces and ends.
9 sizes: L-4, L-6, L-8, L-10, L-12, L-16, L-20, L-24, L-36
Tilting Angle Plate
CL-1 is used mainly on precision angle cutting, it can be used for grinding and drilling, too.
Manual adjustment and easy operation. There are 5 graduations on the swivel shaft.
The left and right angles are adjustable to 30° and 90° respectively.
Universal Tilting Table NCL
Table 360˚ swivel.
45˚ tilt to front, rear, left and right.
T-Slot of table is 12mm.
Suitable for all kinds of slant processing.
The weight is 40kgs; Height: 200mm
