FAMOUS CORPORATION is a manufacturer of U Type Clamp. Due to our large output capacity and strong molding ability for customization production, our company has exported our products to many international markets. Our products are certified according to requirements of customers.
Due to the reliability and stability of the performances of our products enjoying well reputation both home and abroad. If you are interested
U Type Clampor want to corporate with us, please contact us freely for more details.
U Type Clamp

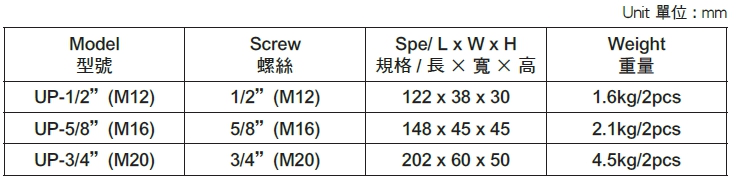

Model - UP-Clamping
- UP-Clamping 2pcs/set
- Hardened:HRC32˚~38 ˚
- Surface Finish: Black Oxide
- Product spec.: Inch size 1/2”, 5/8”, 3/4”; Metric size M12, M16, M20
- Including: 2pcs Flanged Nuts, 2pcs T-Slot Nuts, 2 pcs Clamping Studs, 2 pcs Washer
U-Clamping Material:S45C Hardened:HRC32˚~38 ˚ Surface Finish: Black Oxide 2pcs/set Product spec.: Inch size 3/8”, 1/2”, 5/8”, 3/4”, 1”; Metric size M10, M12, M16, M20, M24 Apply for fixing each kind of working pieces on machining table.
U-Clamping (with copper) U-Clamping with copper type Material:S45C Hardened:HRC32˚~38 ˚ Surface Finish: Black Oxide 2pcs/set, with copper and spring The height can be adjusted freely to clamp the workpiece, and the operation is easy.
Drift This drift is made of special steel under precision forge casting. The tip is heat-treated, hard and durable. Inside the handle is a strong spring. It has a strong impact, and the drift can be pulled out easily.
Clamping Kit Purpose: Apply for fixing each kind of working pieces on machining table Material: S45C, black oxide furnished Heat treatment：Hardness of each part is HRC32±5° Each Set contains: stud 24pcs, T nut 6 pcs, flange nut 6 pcs, coupling nut 4 pcs, step clamp 6 pcs, step block 6 pcs, plastic frame
Jack Purpose: Height is adjustable for supporting the working piece on table Material: S45C, black oxide furnished 5 sizes: S-60 (0.6kg), S-70 (0.5kg), S-150 (1kg), S-250 (2.1kg), S-500 (3.8kg) Spiral shape design, convenient operation.
Step Clamps Purpose: Engage the teeth into teeth of step block to adjust the clamping height Material: S45C, black oxide furnished Heat treatment: HRC32±5° Product spec.: 3/8S 3/8M 3/8L (slot width 11mm) 1/2S 1/2M 1/2L (slot width 15mm) 5/8S 5/8M 5/8L (slot width 18mm) 3/4S 3/4M 3/4L (slot width 21mm) 1S 1M 1L (slot width 26mm)
Step Blocks Purpose: The height of block is adjustable when stack up a pair of step block Material: S45C, black oxide furnished Heat treatment：HRC32±5° Product spec.: 3/8S 3/8M 3/8L (thickness 25mm) 1/2S 1/2M 1/2L (thickness 32mm) 3/4S 3/4M 3/4L (thickness 38mm) 1S 1M 1L (thickness 50mm)
Flanged, Coupling, T- Slot Nuts Flanged Nuts: Combine with stud and clamp for all kind of clipping application. Coupling Nuts: Connect two studs on both ends of nut to extend the length of applying range. T-Slot Nuts: Apply on the T slotted working table. Material: S45C, black oxide furnished Heat treatment: HRC32±5° Product spec.: Inch size 3/8”/1/2”/5/8”/3/4”7/8”/1”； Metric size M8/ M10/M12 /M14/M16/M18/M20/M24
Clamping Studs Purpose: Operate with flange nut and every kind of clamping plain for fixing work piece on slotted table. Material: S45C, black oxide furnished Heat treatment： HRC 32±5° Product spec: Inch size 5/16”/3/8”/1/2”/5/8”/3/4”7/8”/1” Metric size M8/M10/M12/M14 /M16/M18/M20/M22/M24
L-Plate Made of high tensile cast iron properly seasoned against dis-torsion. Webbed style accurately machined, square and parallel on out-side faces and ends. 9 sizes: L-4, L-6, L-8, L-10, L-12, L-16, L-20, L-24, L-36
Tilting Angle Plate CL-1 is used mainly on precision angle cutting, it can be used for grinding and drilling, too. Manual adjustment and easy operation. There are 5 graduations on the swivel shaft. The left and right angles are adjustable to 30° and 90° respectively.
