TürkHydraulic Machine Vise
FAMOUS CORPORATION is the leading Taiwan manufacturer, supplier and exporter of Hydraulic Machine Vise, which is manufactured using finest quality raw material and components. During the manufacturing process, our expert teams checks the quality of the products thus we ensure the superior products to our clients. Our products with high quality materials and advanced technology mechanism can meet the contemporary styles.
We have owned an excellent team work which guarantee timely delivery with top quality
Hydraulic Machine Vise
and thoughtful service. If you want to learn more about what we can do for you, contact us at any time, we look forward to establishing a good and long-term business relationship with you.

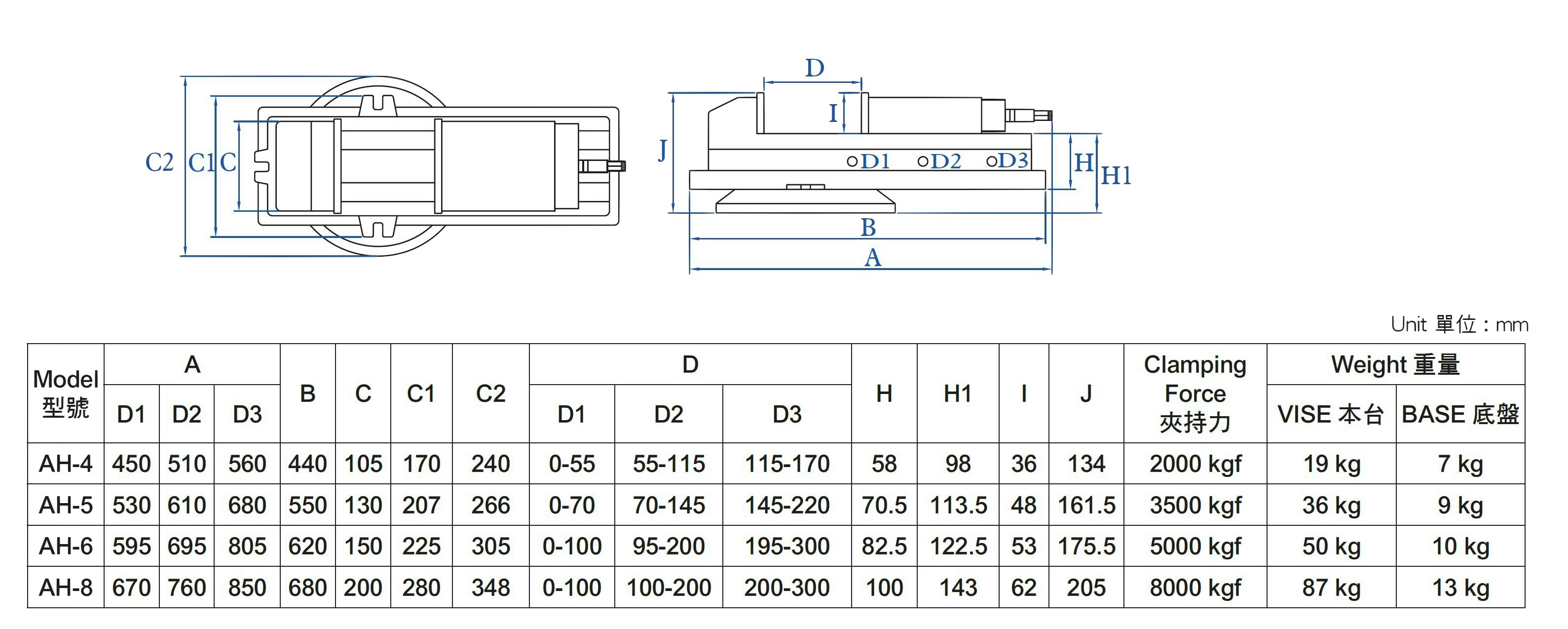

Hydraulic Machine Vise
Model - AH
Hydraulic Vise
- Constructed with Hydraulic Cylinder, which absorbs cutting vibration and improves the precision of machining whilst maintaining a high clamping force.
- Vise Body is made of high tensile cast iron. The Sideways are hardened and ground to ensure rigidity, durability and minimal deformation.
- Clamping ranges design：Quick to change and easy to operate.
Enquiry Now
Products List
Mechanical Power Vise
Delicately designed structure, ensures working precision and enhances rigidity for long service life.
Fast switch and high compatible module.
Front chip cover equipped to protect leadscrew from swarf.
Rear chip cover adopted, prevents chips getting into the vise.
Powerful Backward Clamping Vise
Backward Clamping Vise, it's ergonomics for easy reach, thus saves time and prevents back strain
Delicately designed structure, ensures working precision and enhances rigidity for long service life.
Fast switch and high compatible module.
Special patented system, conducive to amplifying and stabilizing pressure.
Mechanical Type Power Vise
The body of the MPV double force vise adopts a vertical rib structure to enhance the bending resistance of the body. The cast iron with good ductility is selected.
Hidden floating prevention mechanism reduces the floating rate of workpieces.
The working surface and the sliding surface of the movable body are heat-treated, the hardness can reach 45 degrees or more HRC, and the wear resistance is high.
Magical Jaw Vise
Multiple Jaws fit many different processing needs, and can clamp workpiece in any shapes including round, polygon and angularity.
Vise Jaws made of S-50C under HRC-55˚ heat treatment. (soft jaw is also available)
Vise maximum clamping force is 1200kgf
Magical Jaw Vise (Aluminum Jaw)
Multiple Jaws fit many different processing needs, no matter what shape of working piece, such as square, round, cylindrical or any irregular shapes, it can be clamped quickly.
Aluminum Jaw.
Vise maximum clamping force is 1200kgf
Magical Jaw Vise (Acrylic Jaw)
Multiple Jaws fit many different processing needs, and can clamp workpiece in any shapes including round, polygon and angularity.
Acrylic Jaw- non-conducting .
Mulaiple function Vise Changeable Mouth
Vise maximum clamping force is 1200kgf
Repositionability Magical Jaw Vise
Multiple Jaws fit many different processing needs, and can clamp workpiece in any shapes including round, polygon and angularity.
Re-positionability clamping.
The jaw width is 127mm, and maximum opening is 140mm.
Swivel Vise With Universal Clamping
Table 360° swivel.
45° tilt to front, rear, and right.
Suitable for all kinds of slant processing, drilling and milling, etc.
This vise associated with a swivel base can clamp workpiece in any shapes including round, polygon and angularity.
High malleable casting iron.
Vise maximum clamping force 1200kgf
Powerful Angle Lock Vise
Body has one-piece construction for high rigidity and precision.
Angle-Lock Mechanism provides downward pressure on Jaw to ensure parallel clamping.
Both surfaces of Slideways are heat treated.
Large opening capacity up to 300mm.
Hydraulic Angle Lock Vise
Vise body is made of ductile iron FCD60.
Down thrust with "semi-sphere" to prevent work-piece lift.
Vise can side-lock to work.
Vise slide-chunk can take out, Convenient to clean away chips and inside of vise.
Slant Type Built-in Hydraulic Vise
Tilts up and down.
High quality casting with ground finish.
Easy and light operating, 3 holes can be firmly clamped quickly.
Type AHT-6 jaw’s opening 300mm, 2 times larger than the normal milling vises.
It is particularly well suited to many jig and fixture making applications as well as being more versatile for general machining work.
