Hydraulic Clamping Vise

FAMOUS CORPORATION are well established as one of the prominent m manufacturer, supplier and Exporter of the enormously fabricated collection of Hydraulic Clamping Vise. With an abundance of experience, backed by a team of highly qualified engineers, skilled personnel and technicians, the company brings with it a guarantee of quality, reliability and enduring commitment through continuous after sales service.
  • Hydraulic Clamping Vise - PRC

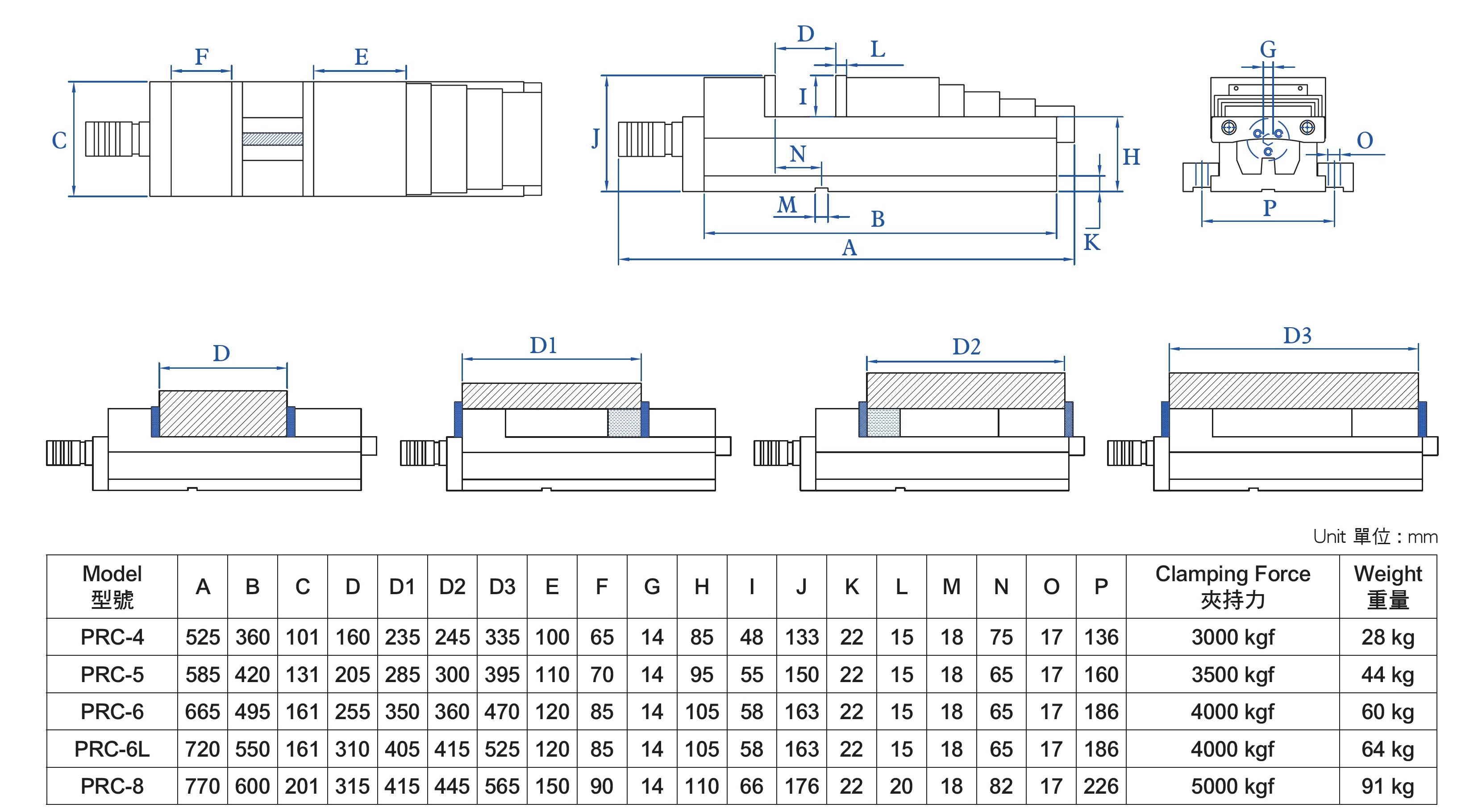

Hydraulic Clamping Vise
Model - PRC
Powerful Backward Clamping Vise
  1. Backward Clamping Vise, it's ergonomics for easy reach, thus saves time and prevents back strain
  2. Delicately designed structure, ensures working precision and enhances rigidity for long service life.
  3. Fast switch and high compatible module.
  4. Special patented system, conducive to amplifying and stabilizing pressure.

We provide a variety of

Hydraulic Clamping Vise

. These products are including many features, such as high quality, fast delivery, competitive prices, environmental friendly products and diverse. We follow ethical business policies to provide ultimate client satisfaction to our clients.
Enquiry Now
Products List
Mechanical Power Vise Delicately designed structure, ensures working precision and enhances rigidity for long service life. Fast switch and high compatible module. Front chip cover equipped to protect leadscrew from swarf. Rear chip cover adopted, prevents chips getting into the vise.
Mechanical Type Power Vise The body of the MPV double force vise adopts a vertical rib structure to enhance the bending resistance of the body. The cast iron with good ductility is selected. Hidden floating prevention mechanism reduces the floating rate of workpieces. The working surface and the sliding surface of the movable body are heat-treated, the hardness can reach 45 degrees or more HRC, and the wear resistance is high.
Magical Jaw Vise Multiple Jaws fit many different processing needs, and can clamp workpiece in any shapes including round, polygon and angularity.     Vise Jaws made of S-50C under HRC-55˚ heat treatment. (soft jaw is also available) Vise maximum clamping force is 1200kgf
Magical Jaw Vise (Aluminum Jaw) Multiple Jaws fit many different processing needs, no matter what shape of working piece, such as square, round, cylindrical or any irregular shapes, it can be clamped quickly.    Aluminum Jaw. Vise maximum clamping force is 1200kgf
Magical Jaw Vise (Acrylic Jaw) Multiple Jaws fit many different processing needs, and can clamp workpiece in any shapes including round, polygon and angularity.     Acrylic Jaw- non-conducting . Mulaiple function Vise Changeable Mouth Vise maximum clamping force is 1200kgf
Repositionability Magical Jaw Vise Multiple Jaws fit many different processing needs, and can clamp workpiece in any shapes including round, polygon and angularity.     Re-positionability clamping. The jaw width is 127mm, and maximum opening is 140mm.
Swivel Vise With Universal Clamping Table 360° swivel. 45° tilt to front, rear, and right. Suitable for all kinds of slant processing, drilling and milling, etc. This vise associated with a swivel base can clamp workpiece in any shapes including round, polygon and angularity. High malleable casting iron. Vise maximum clamping force 1200kgf
Hydraulic Vise Constructed with Hydraulic Cylinder, which absorbs cutting vibration and improves the precision of machining whilst maintaining a high clamping force. Vise Body is made of high tensile cast iron. The Sideways are hardened and ground to ensure rigidity, durability and minimal deformation. Clamping ranges design:Quick to change and easy to operate.
Powerful Angle Lock Vise Body has one-piece construction for high rigidity and precision. Angle-Lock Mechanism provides downward pressure on Jaw to ensure parallel clamping. Both surfaces of Slideways are heat treated. Large opening capacity up to 300mm.
Hydraulic Angle Lock Vise Vise body is made of ductile iron FCD60. Down thrust with "semi-sphere" to prevent work-piece lift. Vise can side-lock to work.   Vise slide-chunk can take out, Convenient to clean away chips and inside of vise.
Slant Type Built-in Hydraulic Vise Tilts up and down. High quality casting with ground finish. Easy and light operating, 3 holes can be firmly clamped quickly. Type AHT-6 jaw’s opening 300mm, 2 times larger than the normal milling vises. It is particularly well suited to many jig and fixture making applications as well as being more versatile for general machining work.
