Self Centering Vise Supplier and Manufacturer in Taiwan

Catalog

Self Centering Vise

FAMOUS CORPORATION is professional Manufacturer, Supplier and Exporter specialized in the development and production of Self Centering Vise. We are located in Taiwan, with convenient transportation access. All of our products have own a good reputation in the same industry with the excellent quality and reasonable price.

We have advanced producing equipments of

Self Centering Vise

and good workmanship and gradually explore some new design. All overseas partners are welcome to negotiate and cooperate with us.

Share to：

Self Centering Vise

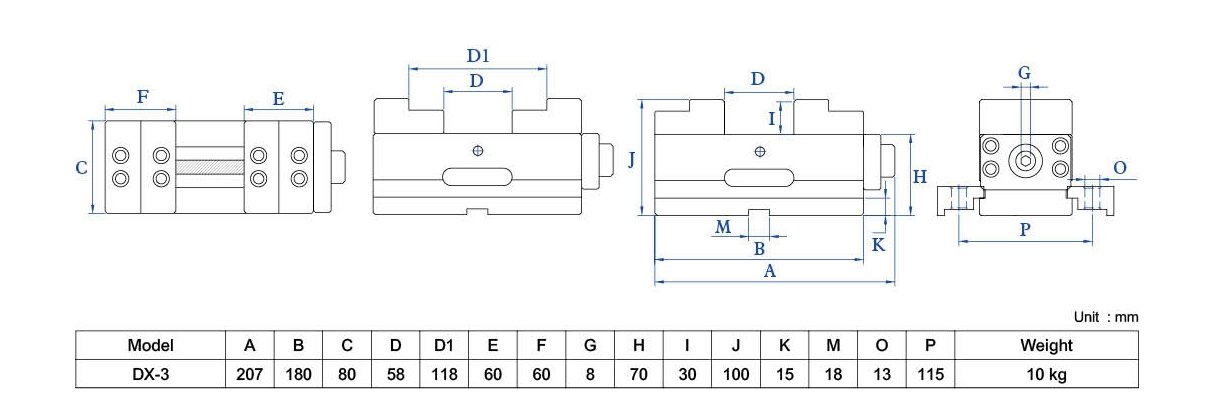

Model - DX-3

Self Centering Vise

Self Centering Vise
Suitable for CNC 5-Axis Machining Centers, horizontal and vertical CNC Machining Centers.
Vise body is made of high malleable iron FCD60, delicately designed structure, ensures working precision and enhances rigidity for long service life.
The repeatability positioning precision of its clamping center is within ±0.01mm.

Enquiry Now

* Required

To: FAMOUS CORPORATION

*Subject:

Enquiry Details

Incoterm:

Payment:

Initial Order Quantity:

Sample Terms:

*Message:

Please provide following contact details

Title:

Mr.

Ms.

Mrs.

*First Name:

*Last Name:

*Company:

*Country/Territory:

Address:

*E-mail:

*Telephone:

Fax:

URL:

*Prove code:

Click Refresh Prove code

Products List

View Detail

Flexible Vise

X-3

CNC Flexible Vise Suitable to be used in 4 and 5 Axis CNC Rotary Table, either in horizontal or vertical machining. Vise body is made of high malleable iron FCD60, delicately designed structure, ensures working precision and enhances rigidity for long service life. Sliding surfaces are hardened to HRC 50°, flexible designed vise jaw is made by high quality steel and hardened HRC 50°.

View Detail

Self Centering Vice

DX-305

Self Centering Vise Self Centering Vise Suitable to be used in 4 and 5 Axis CNC Rotary Table, either in horizontal or vertical machining. The repeatability positioning precision of its clamping center is within ±0.01mm/100mm.

View Detail

Self Centering Clamp

DX-306

Self Centering Vise Suitable to be used in 4 and 5 Axis CNC Rotary Table, either in horizontal or vertical machining. Vise body is made of high malleable iron FCD60. Self Centering Vise with special designed Jaws can hold various workpieces

View Detail

Centering Vise

DX-3C

Self Centering Vise Suitable to be used in 4 and 5 Axis CNC Rotary Table, either in horizontal or vertical machining. Vise body is made of high malleable iron FCD60, delicately designed structure, ensures working precision and enhances rigidity for long service life. Double Lock Vise can hold 2 workpieces of different sizes. Central Jaw may be removed to hold a larger workpiece.

View Detail

Clamp Accessories

X-3 & DX-3

Optional Accessories of X-3 & DX-3 Optional Accessories of X-3 & DX-3series is including Parallel Clamping Device, T-Slot Nuts, Aluminum Jaw (with Movable Side and Fixed Side), and Aluminum Jaw V Type (with Movable Side and Fixed Side)

View Detail

Vise Stopper

VWSS

Vise Workpiece Stopper-S Vise Workpiece Stopper-S VWSS is used for the 5 Axis Vise-Self Centering Vise DX-3, DX-305, DX-306, Double Lock ViseDX-3C, CNC Flexible Vise X-3. Fastening thread M8, and M6 is also available.
