Self Centering Vice Manufacturer, Supplier-FAMOUS CORPORATION

Catalog

Self Centering Vice

FAMOUS CORPORATION are well established as one of the prominent m manufacturer, supplier and Exporter of the enormously fabricated collection of Self Centering Vice. With an abundance of experience, backed by a team of highly qualified engineers, skilled personnel and technicians, the company brings with it a guarantee of quality, reliability and enduring commitment through continuous after sales service.

Share to：

Self Centering Vice

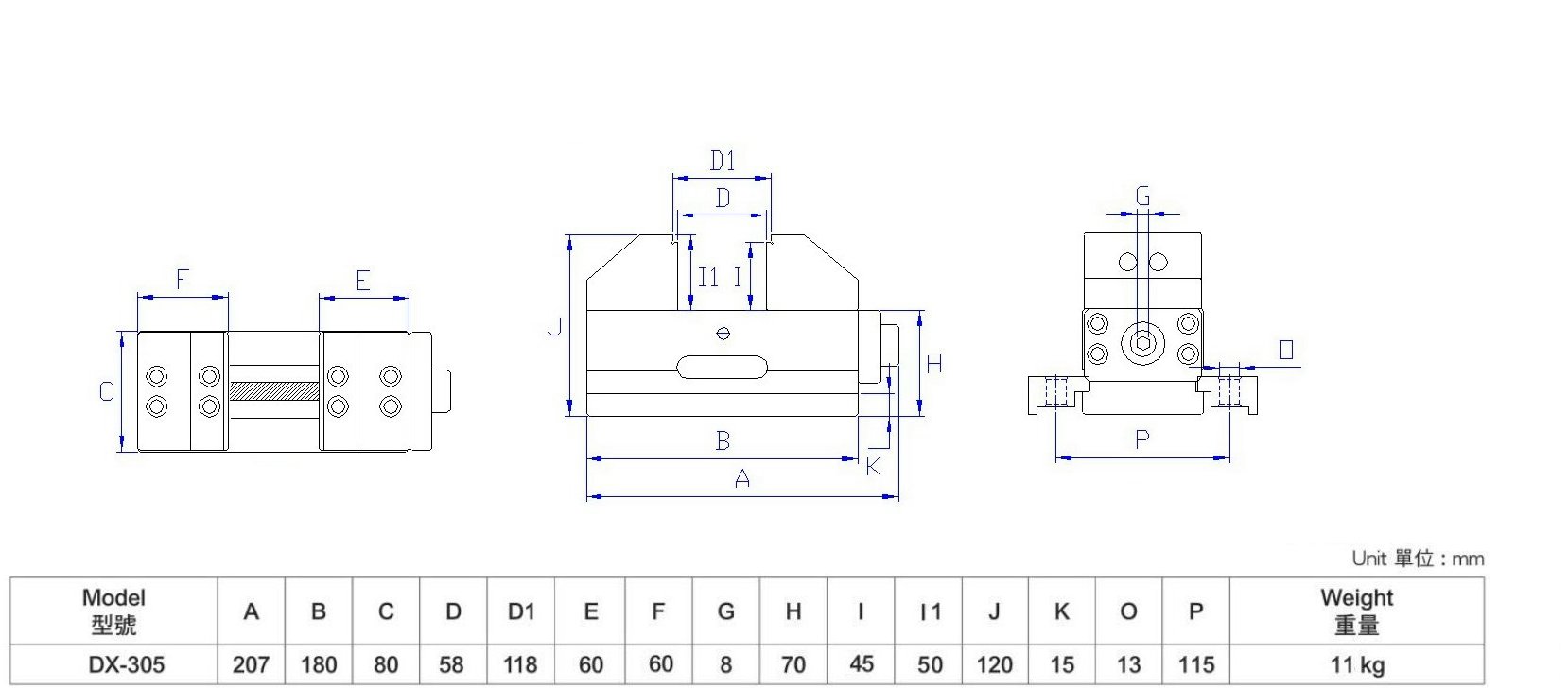

Model - DX-305

Self Centering Vise

Self Centering Vise
Suitable to be used in 4 and 5 Axis CNC Rotary Table, either in horizontal or vertical machining.
The repeatability positioning precision of its clamping center is within ±0.01mm/100mm.

We have advanced production equipments, strong technical force for professional production of

Self Centering Vice

. We hope to cooperate closely with foreign friends around the world.

Enquiry Now

* Required

To: FAMOUS CORPORATION

*Subject:

Enquiry Details

Incoterm:

Payment:

Initial Order Quantity:

Sample Terms:

*Message:

Please provide following contact details

Title:

Mr.

Ms.

Mrs.

*First Name:

*Last Name:

*Company:

*Country/Territory:

Address:

*E-mail:

*Telephone:

Fax:

URL:

*Prove code:

Click Refresh Prove code

Products List

View Detail

Flexible Vise

X-3

CNC Flexible Vise Suitable to be used in 4 and 5 Axis CNC Rotary Table, either in horizontal or vertical machining. Vise body is made of high malleable iron FCD60, delicately designed structure, ensures working precision and enhances rigidity for long service life. Sliding surfaces are hardened to HRC 50°, flexible designed vise jaw is made by high quality steel and hardened HRC 50°.

View Detail

Self Centering Vise

DX-3

Self Centering Vise Self Centering Vise Suitable for CNC 5-Axis Machining Centers, horizontal and vertical CNC Machining Centers. Vise body is made of high malleable iron FCD60, delicately designed structure, ensures working precision and enhances rigidity for long service life. The repeatability positioning precision of its clamping center is within ±0.01mm.

View Detail

Self Centering Clamp

DX-306

Self Centering Vise Suitable to be used in 4 and 5 Axis CNC Rotary Table, either in horizontal or vertical machining. Vise body is made of high malleable iron FCD60. Self Centering Vise with special designed Jaws can hold various workpieces

View Detail

Centering Vise

DX-3C

Self Centering Vise Suitable to be used in 4 and 5 Axis CNC Rotary Table, either in horizontal or vertical machining. Vise body is made of high malleable iron FCD60, delicately designed structure, ensures working precision and enhances rigidity for long service life. Double Lock Vise can hold 2 workpieces of different sizes. Central Jaw may be removed to hold a larger workpiece.

View Detail

Clamp Accessories

X-3 & DX-3

Optional Accessories of X-3 & DX-3 Optional Accessories of X-3 & DX-3series is including Parallel Clamping Device, T-Slot Nuts, Aluminum Jaw (with Movable Side and Fixed Side), and Aluminum Jaw V Type (with Movable Side and Fixed Side)

View Detail

Vise Stopper

VWSS

Vise Workpiece Stopper-S Vise Workpiece Stopper-S VWSS is used for the 5 Axis Vise-Self Centering Vise DX-3, DX-305, DX-306, Double Lock ViseDX-3C, CNC Flexible Vise X-3. Fastening thread M8, and M6 is also available.
