TürkPneumatic Vice
FAMOUS CORPORATION was established for manufacturing, supplying a variety of Pneumatic Vice. Well-trained and experienced engineers are dedicated to the precision and work optimization to ensure all the products are delivered in high quality at competitive price. We are confident that we are able to meet your exacting requirements with short lead-time, stable quality and also highly competitive price. If there is anything that you would like to know more about our products, contact us today!
Why do global buyers choose our company to purchase the best Pneumatic Vice ? Because our goal is to continue to manufacture and provide the best quality products to all customers. Headquartered in Taiwan, we have always provided professional products and services. Maintaining customer satisfaction is our continuous goal.
Pneumatic Vice

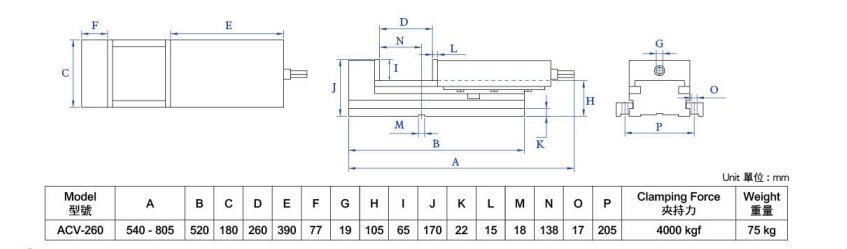

Model - ACV-260
Pneumatic Vise
- The vise can be used vertically, horizontally or stand on one side. Several parallel type vises in series or parallel can be used together.
- New Type Pneumatic boost vise has a clamping force between 0~5000kgf. When the pneumatic pressure drops suddenly, the clamping force remains unchanged. The safety degree is high.
- Airtight design makes cleaning easy. Vise oversize opening between 0~260mm meets most working needs.
- Depending on the size of the workpiece, the travel of the pneumatic switch is preset between 0~4mm. The operation is simple and easy.
- FCD-60 spherical graphitized casting iron (60kgs/mm2) is designed with a super strong structure, and is very resistant to pressure and tension.
- The slide is heat treated to HRC-45° so as to keep precision and long-wearing. Parallelism is 0.01/100mm, and verticality is 0.01/100mm.
- The vise jaws are heat treated to over HRC-55°. Parallelism is 0.01/100mm, and verticality is 0.01/100mm.
Enquiry Now
Products List
Automatic Self-Centering Vise
Inlet Air/Oil Feed Holes
Serrated Jaw
High repeatability
Suitable for automation, compatible with robots
Innovative leveraged structure
Quick mold change capability
Moldable and versatile top jaws
Pneumatic Vise
Lock-Down Mechanism and Safety Features.
Dual Large Clearance Holes on both sides facilitate easy maintenance and prevent vise malfunction.
The New Type Pneumatic Boost Vise offers a clamping force ranging from 0 to 4000kgf. Even in the event of a sudden pneumatic pressure drop, the clamping force remains constant.
Pneumatic Vise
The vise can be used vertically, horizontally or stand on one side. Several parallel type vises in series or parallel can be used together.
When the pneumatic source disappears suddenly, the clamping force remains unchanged. The safety degree is high. Don’t worry about oil leaks.
Powerful structure designed with FCD-60 kgs/mm2 spherical graphite casting iron has good mechanical performance, and is very resistant to pressure and tension.
The slide is heat treated to HRC-55° so as to keep precision and long-wearing. It is very durable.
This vise is very compact and rigid, and does not occupy machine space. The clamping force can be adjusted so as to clamp copper, plastic and thin workpieces.
Pneumatic Power Vise
Forward output pressure can produce two-way power for preventing the main body from becoming deformed and the workpiece will be more accurate.
Conical shape can produce and angle lock power for prevention of cutting plate movement.
Air / Oil Fast Vise-HCV
Delicately designed structure, ensures working precision and enhances rigidity for long service life.
Fast switch and high compatible module.
Front chip cover equipped to protect leadscrew from swarf.
Rear chip cover adopted, prevents chips getting into the vise.
Backward Clamping Air / Oil Fast Vise
Backward Clamping Vise.
It is patented, and suitable for machine centers and milling machines to produce products in large quantity.
Adjust the clamping distance manually depending on processing needs, and the air force will drive the oil hydraulic force.
Air / Oil Fast Vise-HCH
The conventional angle lock vise can be equipped with an air/oil converter to become a fast vise. It is easy to do, and saves costs.
Processing speed is fast. This vise is necessary if you want to increase production quantity.
Air / Oil Fast Vise-HCK
Add a hydraulic unit to the conventional k type vise. This is the most convenient and economic way.
Suitable for the clamping of light cutting, such as clamping aluminum or copper. It is fast and convenient.
Note: The HCK type is designed for lighter clamping. Check the pressure meter. Do not let the pressure of the air compressor exceed the stated limit. For heavy clamping, please use HCV series vises.
