TürkClamping Vise
We wholesale, manufacture and supply the Clamping Vise from Taiwan. With rich export experiences, we not only enure our products with high quality but also can offer competitive prices and best service. With the success of our tremendous growth in export markets as our major activity, we are also fulfilling the demands of local dealers & corporate. We own an excellent group of engineers, with high-tech and professional skills, our products have passed many approvals. Our products are well selected and checked by our professional technicians before being put up for sale, hence high quality.
We are a professional manufacturer, who provides
Clamping Vise
, and we supply high quality, competitive price and best service for our clients.
Clamping Vise

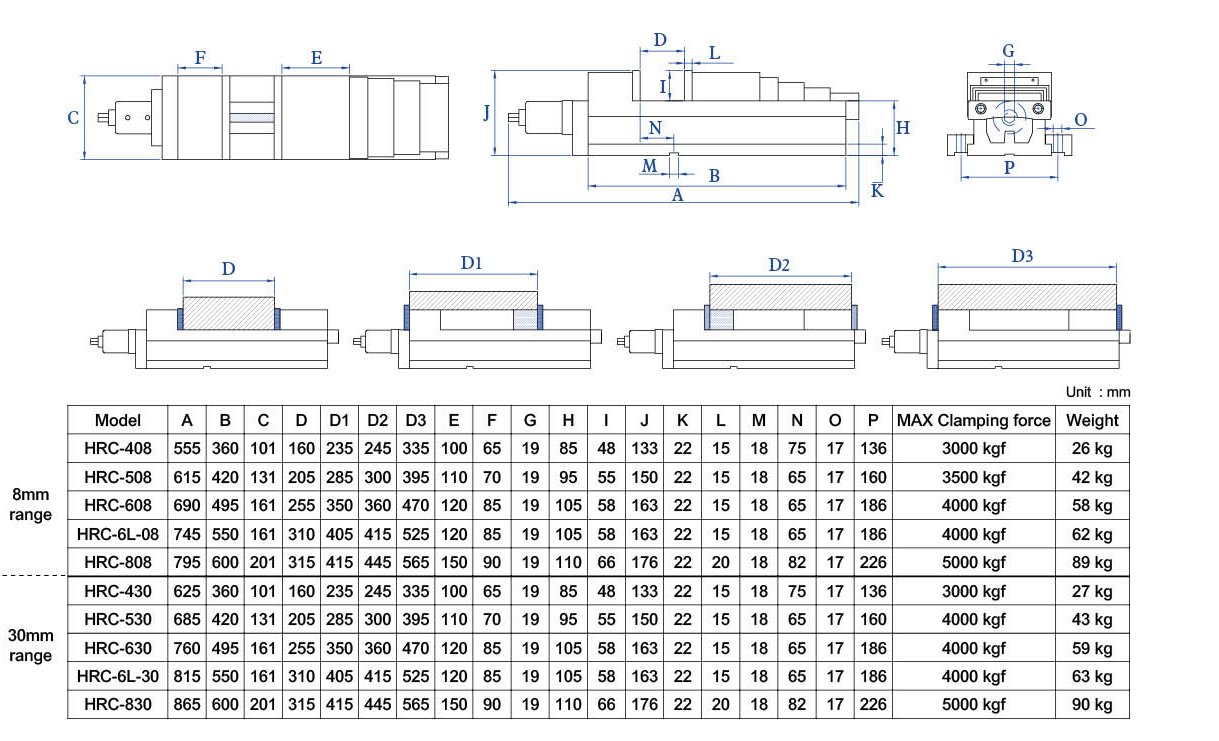

Model - HRC
Backward Clamping Air / Oil Fast Vise
- Backward Clamping Vise.
- It is patented, and suitable for machine centers and milling machines to produce products in large quantity.
- Adjust the clamping distance manually depending on processing needs, and the air force will drive the oil hydraulic force.
Enquiry Now
Products List
Automatic Self-Centering Vise
Inlet Air/Oil Feed Holes
Serrated Jaw
High repeatability
Suitable for automation, compatible with robots
Innovative leveraged structure
Quick mold change capability
Moldable and versatile top jaws
Pneumatic Vise
Lock-Down Mechanism and Safety Features.
Dual Large Clearance Holes on both sides facilitate easy maintenance and prevent vise malfunction.
The New Type Pneumatic Boost Vise offers a clamping force ranging from 0 to 4000kgf. Even in the event of a sudden pneumatic pressure drop, the clamping force remains constant.
Pneumatic Vise
The vise can be used vertically, horizontally or stand on one side. Several parallel type vises in series or parallel can be used together.
When the pneumatic source disappears suddenly, the clamping force remains unchanged. The safety degree is high. Don’t worry about oil leaks.
Powerful structure designed with FCD-60 kgs/mm2 spherical graphite casting iron has good mechanical performance, and is very resistant to pressure and tension.
The slide is heat treated to HRC-55° so as to keep precision and long-wearing. It is very durable.
This vise is very compact and rigid, and does not occupy machine space. The clamping force can be adjusted so as to clamp copper, plastic and thin workpieces.
Pneumatic Vise
The vise can be used vertically, horizontally or stand on one side. Several parallel type vises in series or parallel can be used together.
New Type Pneumatic boost vise has a clamping force between 0~5000kgf. When the pneumatic pressure drops suddenly, the clamping force remains unchanged. The safety degree is high.
Airtight design makes cleaning easy. Vise oversize opening between 0~260mm meets most working needs.
Depending on the size of the workpiece, the travel of the pneumatic switch is preset between 0~4mm. The operation is simple and easy.
FCD-60 spherical graphitized casting iron (60kgs/mm2) is designed with a super strong structure, and is very resistant to pressure and tension.
The slide is heat treated to HRC-45° so as to keep precision and long-wearing. Parallelism is 0.01/100mm, and verticality is 0.01/100mm.
The vise jaws are heat treated to over HRC-55°. Parallelism is 0.01/100mm, and verticality is 0.01/100mm.
Pneumatic Power Vise
Forward output pressure can produce two-way power for preventing the main body from becoming deformed and the workpiece will be more accurate.
Conical shape can produce and angle lock power for prevention of cutting plate movement.
Air / Oil Fast Vise-HCV
Delicately designed structure, ensures working precision and enhances rigidity for long service life.
Fast switch and high compatible module.
Front chip cover equipped to protect leadscrew from swarf.
Rear chip cover adopted, prevents chips getting into the vise.
Air / Oil Fast Vise-HCH
The conventional angle lock vise can be equipped with an air/oil converter to become a fast vise. It is easy to do, and saves costs.
Processing speed is fast. This vise is necessary if you want to increase production quantity.
Air / Oil Fast Vise-HCK
Add a hydraulic unit to the conventional k type vise. This is the most convenient and economic way.
Suitable for the clamping of light cutting, such as clamping aluminum or copper. It is fast and convenient.
Note: The HCK type is designed for lighter clamping. Check the pressure meter. Do not let the pressure of the air compressor exceed the stated limit. For heavy clamping, please use HCV series vises.
