We are reputed Taiwan Angle Lock Vice manufacturer, supplier, exporter and factory. We offer our customers a comprehensive range of products that match the strict quality requirements of International market which has earned our company the distinct reputation of being a quality oriented Taiwan Exporter. We are recognized as one of the leading traders in this sector due to our capability to supply impeccable products to our customers. We laid our foot years back & ever since we are striving to deliver in our products innovation, competitive pricing & quality driven customer satisfaction.
Our company specializes in supplying the best Angle Lock Vice products. The secret to success in the international arena. All of our colleagues do business with customers. We do not make promises to customers lightly. Once we make a promise, we must go all out regardless of the cost. The customer is us. Therefore, we give priority to the needs of our customers, and we strive to establish far-reaching partnerships with customers, and become a long-term important partner that customers trust and rely on for success. We assure you that our company is capable of providing the best products and after-sales service.

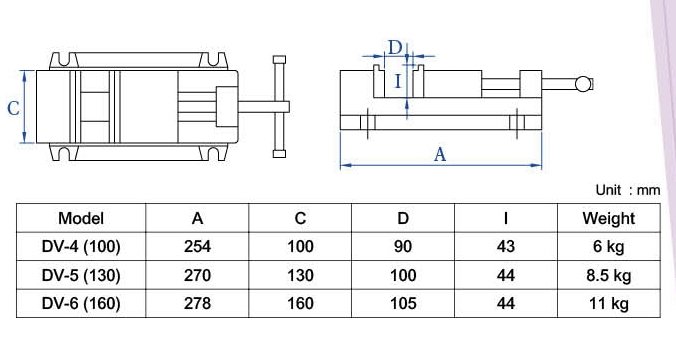

Angle Lock Vice
Model - DV
Angle Lock Type/Light Weight Precision Vise
- Angle Lock Mechanism produces downward pressure on Jaw during clamping, ensuring that both Jaws are parallel and work is held accurately.
- Slideways and underside of vise are precision ground.
- The Stepped Jaw Plates are hardened to HRC 50º and precision ground.
Enquiry Now
Products List
NCV Type Precision Vise
Delicately designed structure, ensures working precision and enhances rigidity for long service life.
Fast switch and high compatible module.
Using high-grade iron of over FCD 60 grade for high rigidity and also Angle-Lock System which automatically pulls the workpiece down to the accurate position of within 0.01mm, this vise is most suitable for precision mold making on Machining Centers.
Vise can be mounted horizontally or vertically.
Backward Clamping Vise
Delicately designed structure, ensures working precision and enhances rigidity for long service life.
Fast switch and high compatible module.
Front chip cover equipped to protect leadscrew from swarf.
Rear chip cover adopted, prevents chips getting into the vise.
Angle Lock Vise (Side-by-Side Type)
Angle Lock Vise CR type, can be placed side-by-side on the N/C equipment.
Sides ground.
Parallel with each other to 0.02mm
Jaw Opening to 145mm of CR-6
2-Way Angle Milling Vise
Tilts up and down, 2-Way Angle Milling Vise, Easy and light operating, it is particularly well suited to many jig and fixture making applications as well as being more versatile for general machining work.
2-Way Angle Milling Vise
2 Way Angle Milling Vise UV-135
The Jaw width is 150mm, and Max Jaw Opening:130mm
The vise can be elevated through 90º from the horizontal to the vertical position.
The 360º tunable base is graduated in degrees.
Universal 3-way Vise
Angles can be set in three dimensions.
The 360º tunable base is graduated in degrees
The vise can be elevated through 90º from the horizontal to the vertical position, and it can also be tilted on its lower angle setting base up to 45º in both the left and right directions.
The vise can be securely locked in all of its three settings.
K Type Vise
The jaw opening of K type Vise:
4K type vise (Jaw Width 100mm) max jaw opening: 70mm
5K type vise (Jaw Width 130mm) max jaw opening: 85mm
6K type vise (Jaw Width 150mm) max jaw opening: 105mm
8K type vise (Jaw Width 200mm) max jaw opening: 150mm
Super-Open Milling Vise
Super-Opening Milling Vise, 200mm Jaw Opening on FJ-400 Vise, 300mm Jaw Opening on FJ-600 Vise.
Easy operating, 3 holes for FJ-600 can be firmly clamped quickly.
Suitable for any kind of general milling machines
Table Quick Vise TQV-4”
Quick and Fast, easy to operate
Maximum opening of jaw is up to 110mm, jaw width 101mm.
Designed for home, workshop, professional use, general purpose and light work, and ideal for woodworking, cutting conduit, drilling, metalworking and more!
Free Vise SV-Type
The clamping length is no limitation.
Rigid and durable.
The material is special steel, and heat treated, precisely ground. The vise has a strong construction and a high precision.
3 sizes: SV-62, SV-85, SV-125
Free Vise FV-Type
Free Vise FV type, the clamping length is no limitation.
The material is Cast Iron.
3 Size: FV-350 Jaw width:75mm(3”); FV-450 Jaw width:102mm(4”); FV-550 Jaw width:125mm(5”)
The screw sets is included.
